| Z4系列 Z4 Series | Z4L系列 Z4L Series |
基本参数 Main parameters |
长宽高 Length*width*height(mm) | 4960*1850*1970 | 5350*1850*1970 |
轴距 Wheelbase (mm) | 2600 | 2900 |
标配座位数 Standard Seats | 11 | 15 |
油箱容量 Capacity of fuel tank(L) | 70 | 70 |

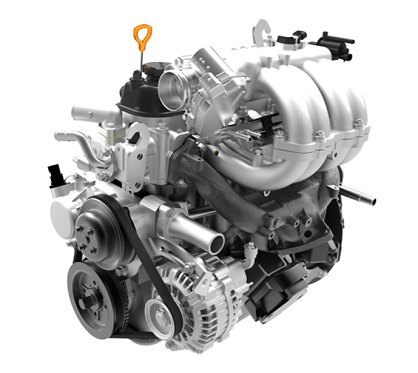

发动机型号 Engine Model | JM491Q-ME(EFI) | 4JB1 diesel engine (without turbo) | JM491Q-ME(EFI) | 4JB1 diesel engine (without turbo) |
4-cylinder, water-cooled, EFI | ISUZU technology | 4-cylinder, water-cooled, EFI | ISUZU technology |
燃油类型 Fuel Type | 汽油 Gasoline | 柴油 Diesel | 汽油 Gasoline | 柴油 Diesel |
排放 Emission | EURO-IV | EURO-IV | EURO-IV | EURO-IV |
排量 Displacement | 2.237L | 2.771L | 2.237L | 2.771L |
额定功率 Rated output( kw/rpm) | 76/ 4600 | 57/3600 | 76/ 4600 | 57/3600 |
最大扭矩 Max. torque (N.m/rpm) | 193/ 2000-2600 | 202/2300 | 193/ 2000-2600 | 202/2300 |
最高时速 Max. speed | ≧110 | ≧110 | ≧110 | ≧110 |
轮胎 Tire | 195 / 70R R15 |

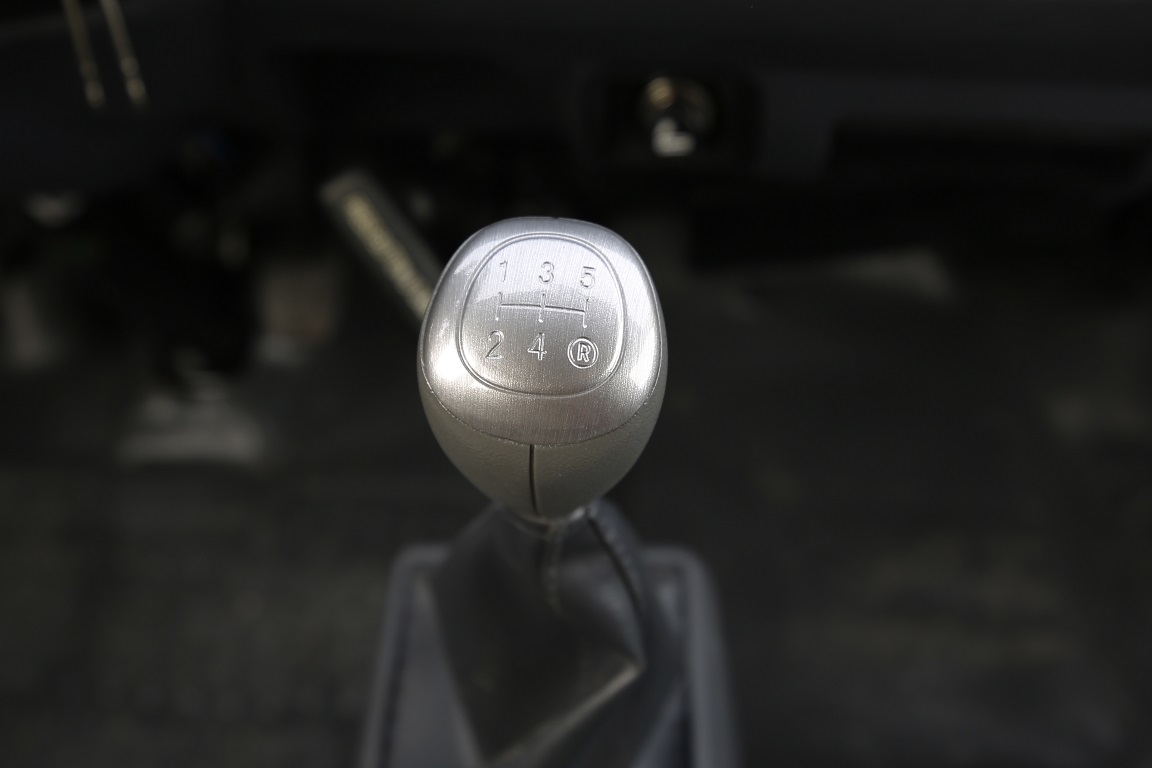

变速箱 Transmission | 手动五档变速/manual 5 speeds |
离合器 Clutch | 单片、液压操作 Single, hydraulic control |
刹车系统 Brake system | 前盘后鼓,真空助力液压制动 front disc / rear drum, hydraulic brake, |
悬挂系统 Suspension | 前独立悬架,后板簧 Front wishbone independent suspension, rear leaf spring |
前悬/后悬 Front and rear overhang | 1300/1150mm | 前轮距/后轮距 Front /rear tread | 1430/1430mm |
最大爬坡度 Max. gradability (%) | ≥32 | 接近角/离去角 Approach / departure angle | 18°/19° |
整备质量 Curb Weight | 1620 KG | 最大总质量 GVW | 2420KG |
主要配置 Equipment |
内饰 interior |
CD带USB接口 CD radio with USB | ● |

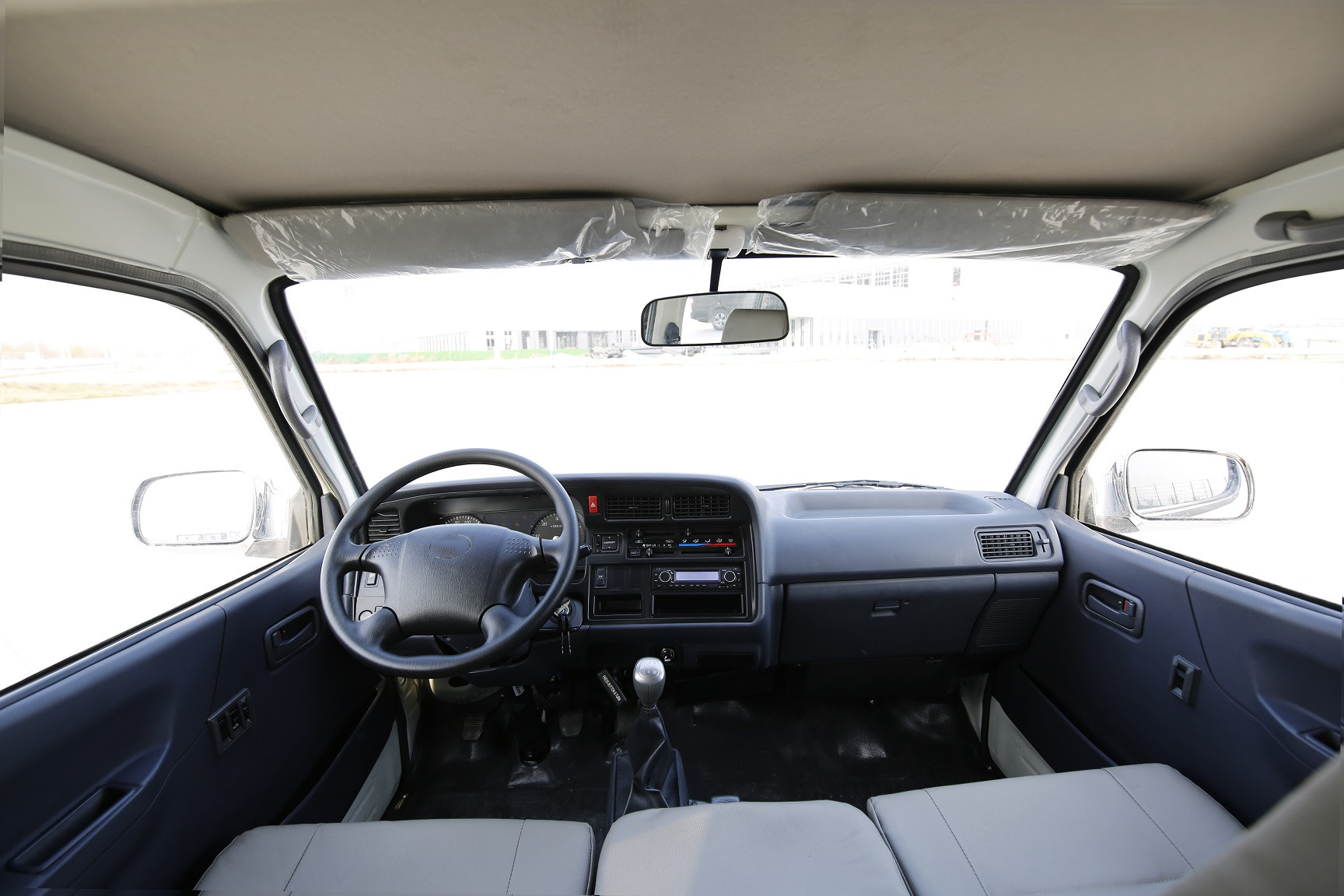

经典仪表台 99 year model dashboard | ● |
可调方向盘 Tiltable steering wheel | ● |

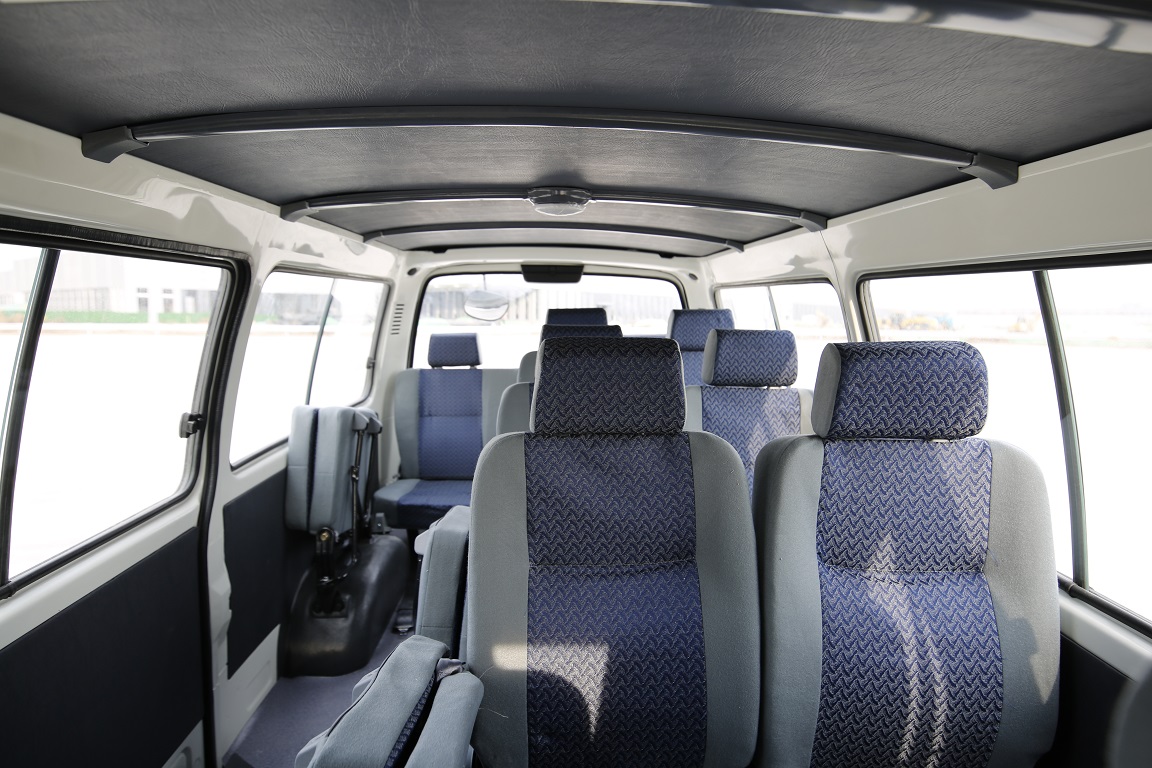

织物座椅带头枕 Fabric seats(head rest) | ● |

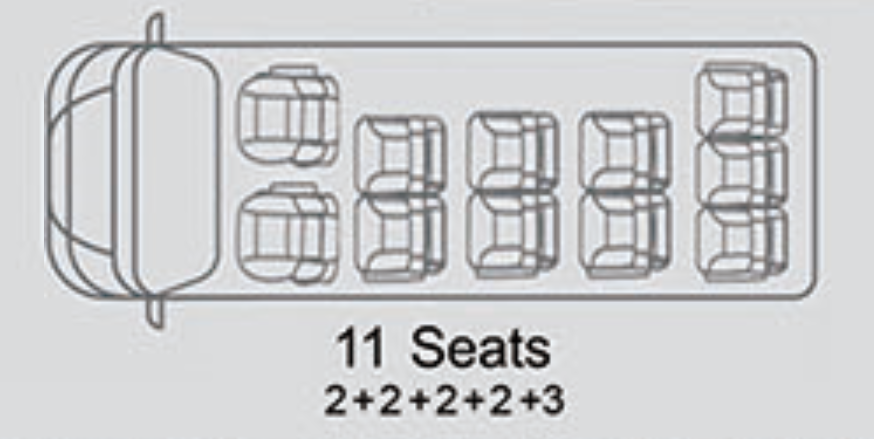

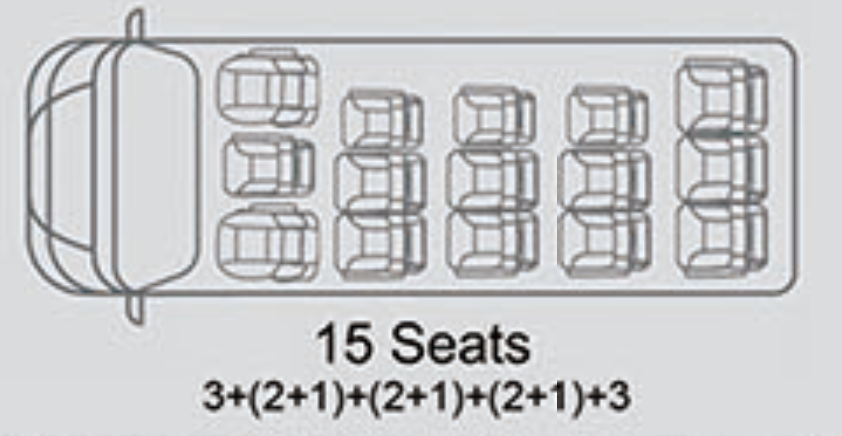

座椅排布 seats layout | 2+2+2+2+3 | 3+(2+1)+(2+1)+(2+1)+3 |
2点式安全带 2P seat belt | ● |
手动门锁 Manual door lock | ● |
PVC地板革 PVC floor | ● |
前暖风带除霜 Front heater with defroster | ● |
PVC 顶棚 PVC roof | ● |
乘客区后顶灯(1 个) Rear Lamps (1 pec) | ● |
正副驾驶遮阳板 Sun visor for river and co-driver | ● |
外观 exterior |
白玻璃,带推拉窗 White glass , sliding window | ● |
黑色手动后视镜 Black manual wing mirrors | ● |
前排手动车窗 Front manual window | ● |
前间隙式雨刮 Intermittent front wiper | ● |
钢圈 Steel wheel | ● |
前后挡泥板 Front & rear mudguard | ● |
车身颜色 Body color: 白色:White | ● |
选配 Optional |
前后分体空调 Front and rear independent A/C | ○ |
电动后视镜带转向灯 Rear review mirror with lamp | ○ |
铝合金钢圈 Aluminum rim | ○ |
ABS | ○ |
后雨刮 Rear Wipe+后洗涤 Rear wiper | ○ |
遥控中控门锁 Remote control center door lock | ○ |

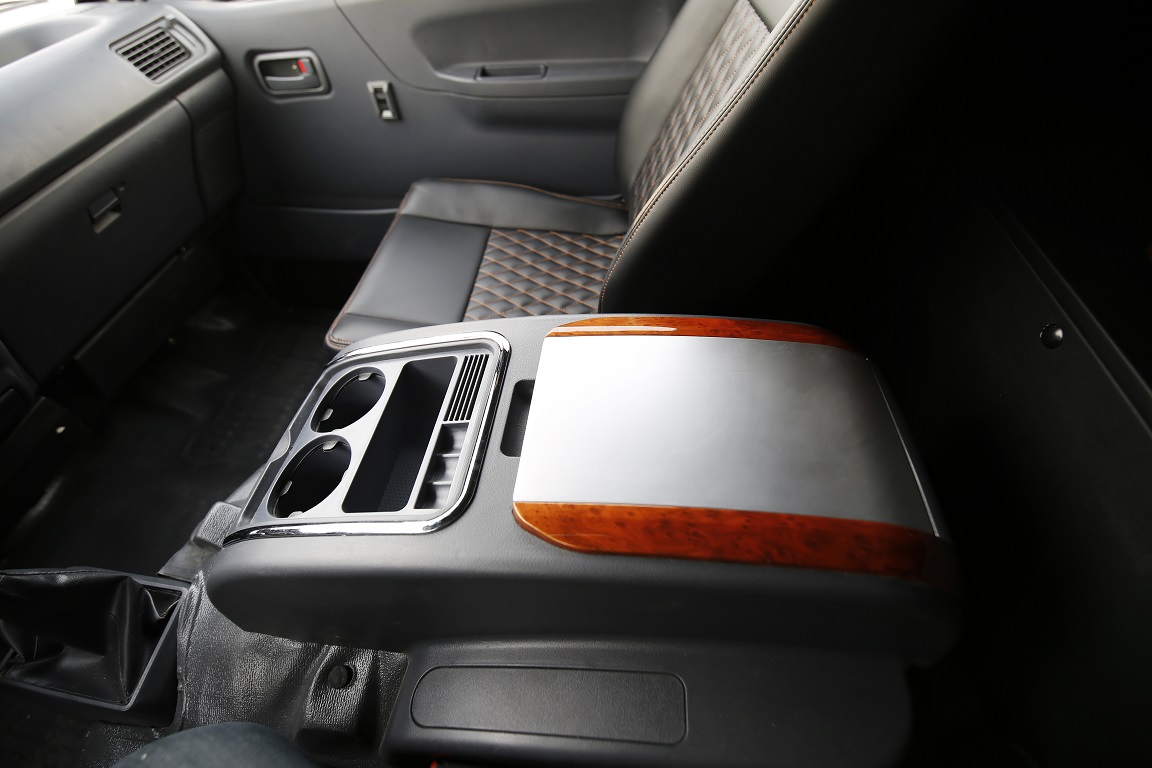

中央置物盒 Central storage box | ○ |
电动前门窗 Front power windows | ○ |
DVD+倒车影像 Rear reverse camera | ○ |
后照地镜 Rear ground mirror | ○ |
竹木地板 Bamboo and wood floor | ○ |
轮毂罩 Hub cover (steel wheel only) | ○ |
