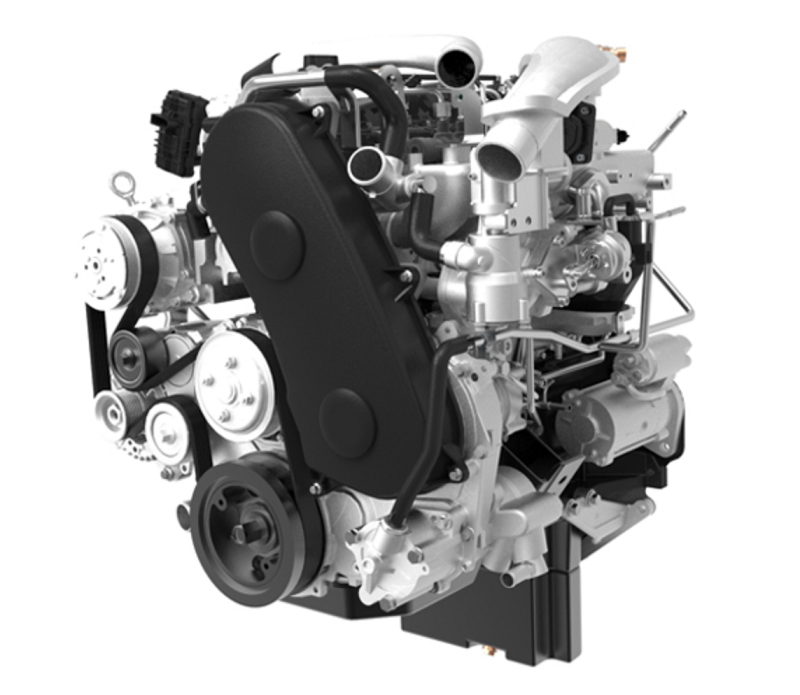

Engine Model 3TZ
Gasoline/Diesel Gasoline
Displacement
Horsepower 94-120kW
Torque 192-260N.m
Discharge 2693

发动机型号 Engine model

3TZ

布置形式 Engine type

直列4缸 inline 4   cylinders

点火顺序 The ignition sequence

1-3-4-2

长X宽X高(mm)Length X Width X Height

702X626X676

缸径X行程(mm) Cylinder   diameter X stroke (mm)

95X95

排量(ml) Displacement (ml)

2693

压缩比 Compression ratio

9.7

进气方式 Intake

自然吸气 Naturally aspirated

配气机构 Engine valve mechanism

DOHC DVVT

喷油方式 Injection way

多点电喷 Multipoint EFI

喷油压力(bar) Injection pressure

4

额定功率(kW/rpm) Rated Power (kW/rpm)

120/4600-5000

最大扭矩(N.m/rpm) Maximum torque (N.m/rpm)

260/2600-3600

最低燃油消耗率(g/kW.h) Minimum fuel   consumption rate (g/kW.h)

250

干重(kg) Weight (kg)

184.5

特有技术 Unique technology

双平衡轴 Double balanced shaft

混动技术 Hybrid technology

米勒循环 Miller cycle


Engine Model DK5
Gasoline/Diesel Diesel
Displacement
Horsepower 125/3400-3600
Torque 370/1800
Discharge 2.982 L

发动机型号 Engine model

DK5

布置形式 Engine type

直列4缸 inline 4   cylinders

点火顺序 The ignition sequence

1-3-4-2

长X宽X高(mm)Length X Width X Height

770×687×696

缸径X行程(mm) Cylinder   diameter X stroke (mm)

96X103

排量(ml) Displacement (ml)

2982

压缩比 Compression ratio

17.3

进气方式 Intake

涡轮增压 Turboc

配气机构 Engine valve mechanism

DOHC EGR

喷油方式 Injection way

缸内直喷 Direct injection (GDI)

喷油压力(bar) Injection pressure

2000

额定功率(kW/rpm) Rated Power (kW/rpm)

125/3400-3600

最大扭矩(N.m/rpm) Maximum torque (N.m/rpm)

370/1800

最低燃油消耗率(g/kW.h) Minimum fuel   consumption rate (g/kW.h)

210

干重(kg) Weight (kg)

260

特有技术 Unique technology

VNT EGR 双层水套

VNT EGR Double jacket



D6系列 D6 SeriesD7系列 D7 SeriesD7L系列 D7L Series
基本参数 Main   parameters
长宽高   length*width*height(mm)5995×1993×25407005×2000×28407480*2020*2910
轴距 Wheelbase   (mm)                              367043304330

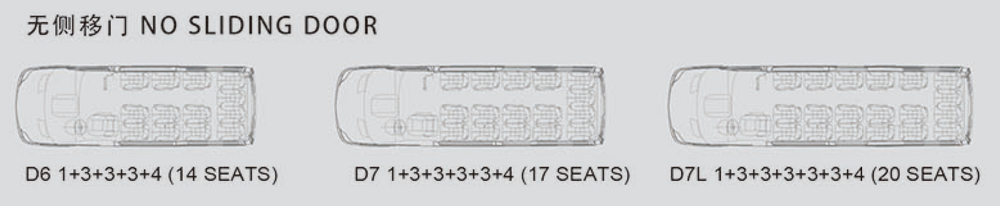

标配座位数 Standard   Seats1+3+3+3+4 (14 seats)1+3+3+3+3+4 (17 seats)1+3+3+3+3+3+4 (20 seats)
发动机型号 Engine   Model3TZDK5DK5DK5
燃油类型 Fuel Type汽油 Gasoline 柴油 Diesel 柴油 Diesel 柴油 Diesel
排放 Emission欧四 EURO IV欧四 EURO IV欧四 EURO IV欧四 EURO IV
排量   Displacement                                      2.693L2.982L2.982L2.982L
额定功率 Rated   output( kw/rpm)                                120/4600-5000110/3400110/3400110/3400
最大扭矩 Max. torque   (N.m/rpm)                               260/2600-3600370/2000370/2000370/2000
轮胎 Tire215/75R16C215/75R16LT215/75R16LT 10PR
后单胎 Rear single   tire


前后轮距 Wheel Track   Front/Rear (mm) 1710/17161690/15251706/1520
最小离地间隙 Min.   Ground Clearance (mm) 200180180
最大载重量 Laden   Weight (kg) 398050005510
车辆净重 Curb Weight   (kg) 273033003790
前后轴载重 Max. Axle   Load Front/Rear (kg) 1730/22501900/31001900/3700
油箱容量 Fuel Tank   Capacity (L) 808080
标配变速箱 Standard   transmission手动五档变速,软轴操控/manual 5 speeds,   flexible shaft control
选配变速箱 Optional   transmission手动六档变速,软轴操控/manual 6 speeds,   flexible shaft control
驱动类请 Drive   Style  发动机前置后驱 Front Engine Rear Drive
转向 Steering 液压助力 Hydraulic Assist
离合 Clutch 单片液压 Singlechip, Hydraulic
刹车系统 Brake   system前盘后鼓 Front Disc/Rear Drum  ABS+EBD前盘后鼓 Front Disc/Rear Drum  Hydraulic Brake前盘后鼓 Front Disc/Rear Drum
    Hydraulic Brake
悬挂系统 SuspensionMcpherson independent suspension / Rear   Variable Stiffness Spring
    前麦克弗森独立悬架/后变刚度弹簧
主要配置 Equipment
正副驾驶及前风窗透明玻璃

Transparent-driver & Front-passenger Window
乘客区及尾门深灰色玻璃

Dark-glass (Passenger & Rear Window)
电动前门窗 Power   Window (Electric)
电动外后视镜带转向灯

Electronic Control with Turning Light
防炫目内后视镜   Antidazzle

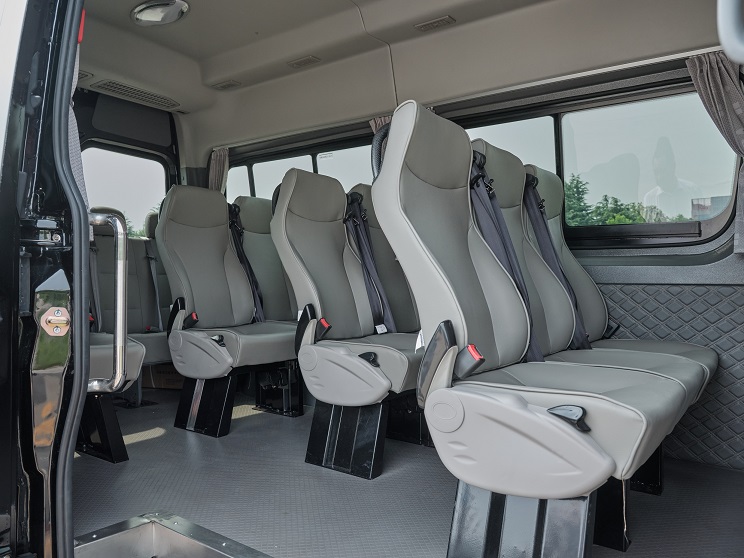

标配织物座椅 Standard   fabric Seats
靠背扶手可调节座椅
    Adjustable Backrest & Headrest
三点式独立安全带 3   Point
PVC地板革 PVC   Carpet
空调 A/C (Air   Conditioner)
前后暖风 Front and   rear Heater
电动中控门锁 Central   Door Lock (Electronic)
铝圈轮毂 Aluminum   wheels,5个铝圈 5 Aluminum   wheels5个铝圈 5 Aluminum wheels5个铝圈 5 Aluminum wheels
CD播放器带收音机 AM/FM   Radio, CD & Loudspeaker

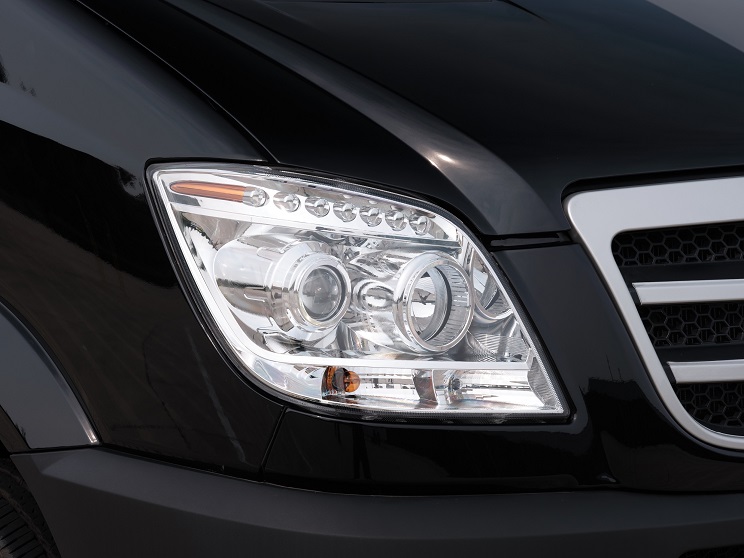

前组合大灯 Front   combination lamp
室灯 Compartment   Lamp
高位刹车灯 High   Position Brake Lamp
储物盒/杯架 Storage Box /Cup Holder

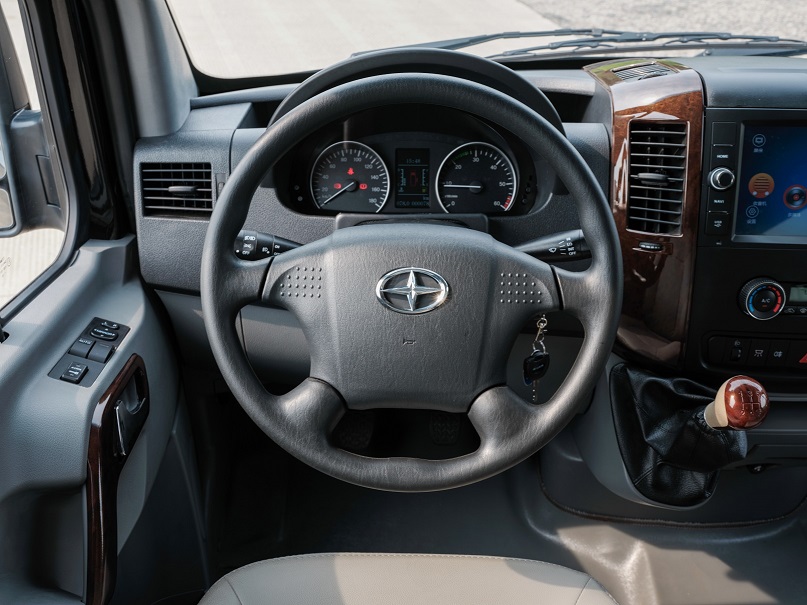

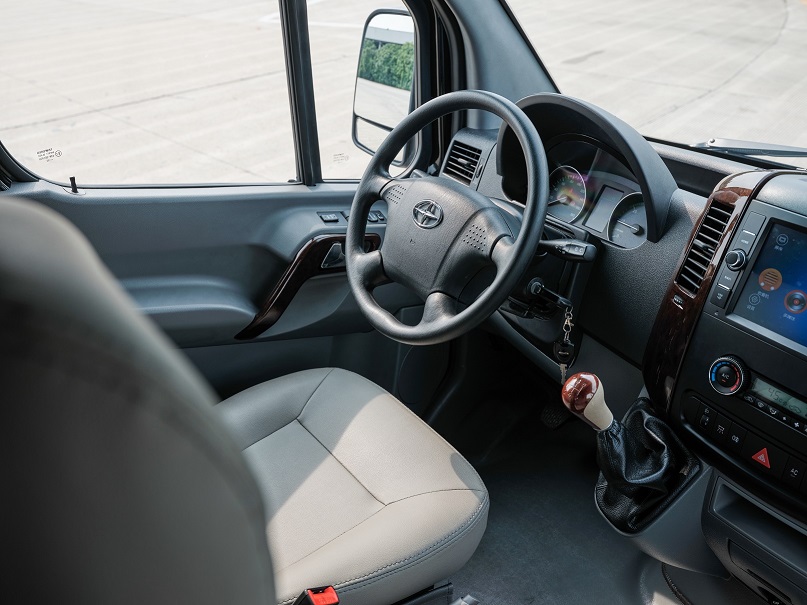

可调节式方向盘   Steering Wheel (Adjustable)
选配   Optional
侧滑门 Side   Sliding Door

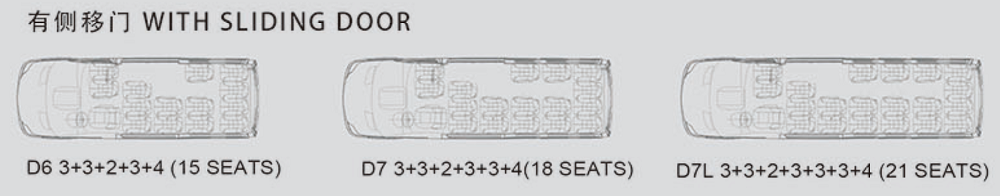

座椅排布(带滑门)
    Seats Layout (side sliding door)
3+3+2+3+4 (15 seats)3+3+2+3+3+4(18 seats)3+3+2+3+3+3+4 (21 seats)
带推拉窗 Passenger   Area Sliding window ○(4○(4○(6○(6○(6○(6
仿皮座椅 Artificial   Leather Seats

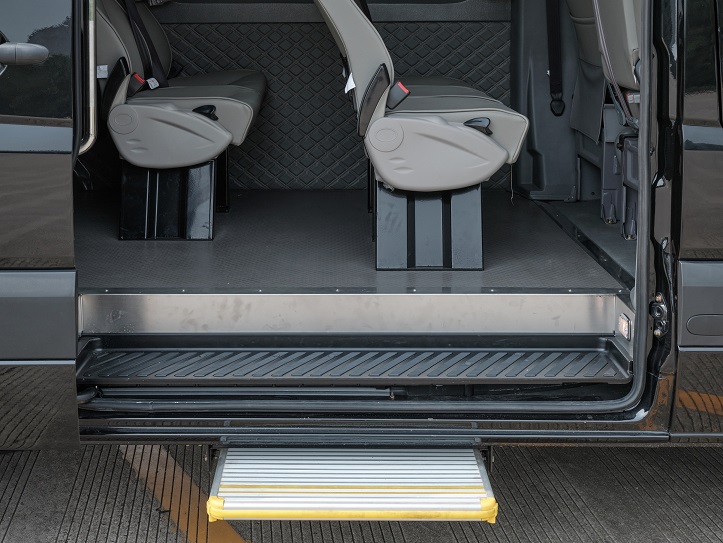

电动伸缩踏板   Electrical Retractable Steps
钢圈轮毂 Steel Wheel   Hub
驻车感应 Parking   Sensors
15LCD 15' LCD   in the front roof

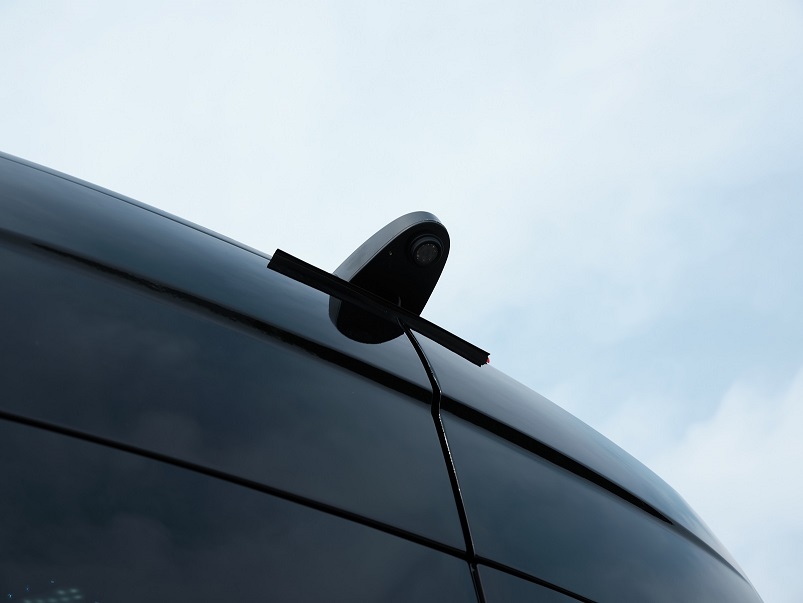

DVD带倒车影像 DVD   & Reversing Display
石英砂地板革 Quartz   Sand Carpet
USB充电接头 USB   charging ports
窗帘 Window   curtains
尾门踏步 Back   step
最后排折叠座椅 Foldable   Rear Seats
顶置空调 Roof-top   Air Conditioning System

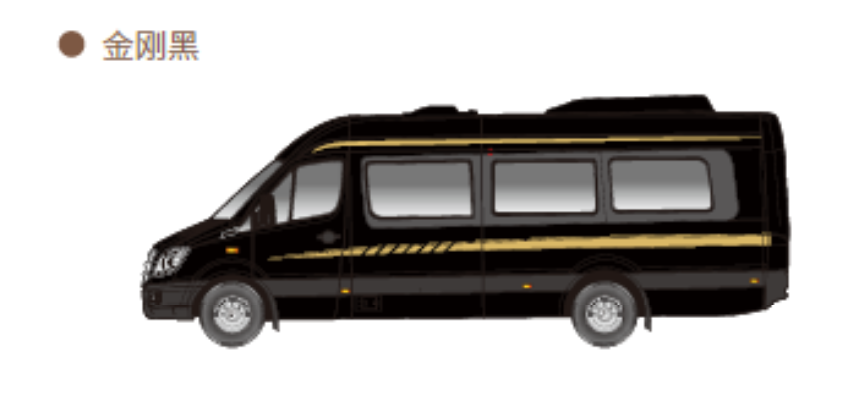

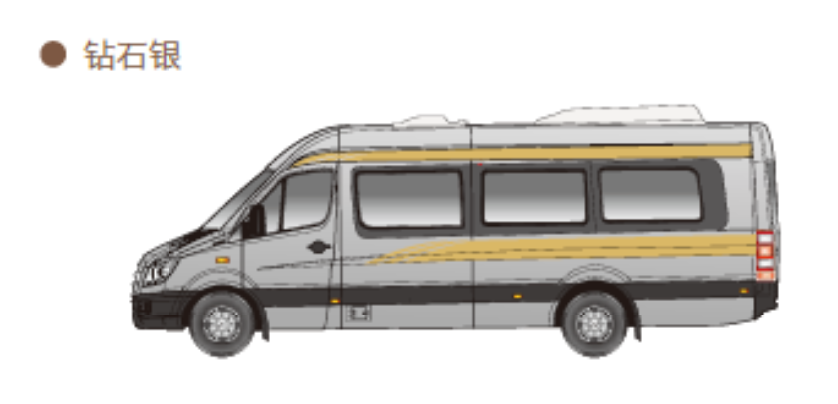

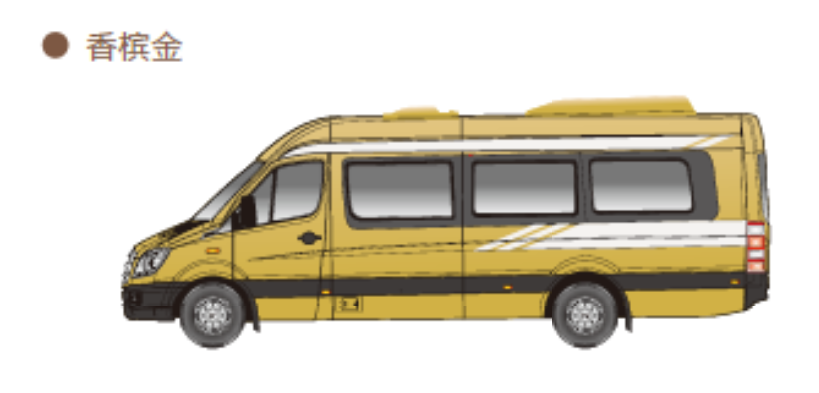

车身颜色 Body ColorWhite/Black/SilverWhite/Black/SilverWhite/Black/Silver
